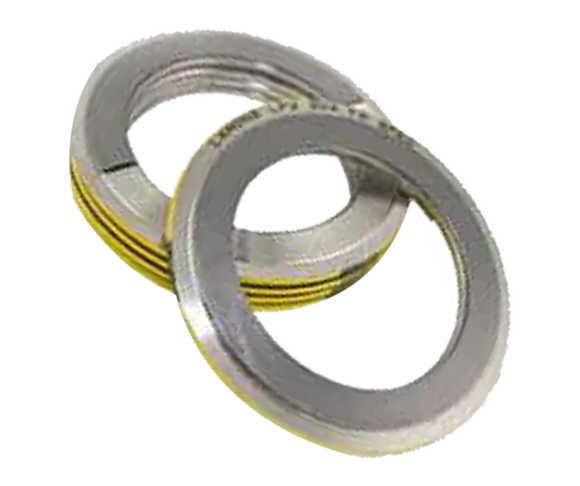

These Kam Profile Gaskets comprise of metal core with concentric grooves on either side with a soft layer of sealing material bounded to both grooved faces. Kam Profile Gaskets combine the benefits of soft cut material with the adantages of seal integrity associated with metallic gaskets and widely used for high pressure upto 250 bar & temperature up to 1000°c dependent on core and layer materials.

Kam Profile Gaskets consist of a metal core (generally Stainless Steel) with concentric grooves on either side with sealing materials. The sealing layers (depending on the service duty) can be Graphite, PTFE (Teflon), CAF or Metal (e.g Aluminium or Silver). Camprofile's can be used without sealing layers to provide an excellent seal but there is a risk of flange surface damage.

A semi-metallic Kam Profile Gaskets Grooved Gaskets system, which consist of: centering (outer) ring made of special steel cam-profiled (sealing) ring made of special steel soft covering layer made of graphite, ptfe. Kam Profile Gaskets consist of a sealing core metal with or without a guide ring. The sealing core is a solid metal gasket with concentric serrations on both sealing surfaces and faced with soft material such as flexible graphite, ePTFE or other materials depending on operating conditions.

• The soft covering layer (in most of the cases expanded graphite), is trapped in the tread and can not be extruded into the gap.
• The trapped graphite provides good compressibility and resilience.
• The cam profiled ring can be re-used again several times.
• A good quality Kammprofile gasket can be very expensive.
• Soft cover cam-profiled sealing ring outer ring.
